Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

বেসিক ইনফরমেশন
Place of Origin: China
পরিচিতিমুলক নাম: Sunswell
সাক্ষ্যদান: CE, ISO, SGS, UL
Model Number: TGX
Minimum Order Quantity: 1 set
মূল্য: Negotiable
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Applications:

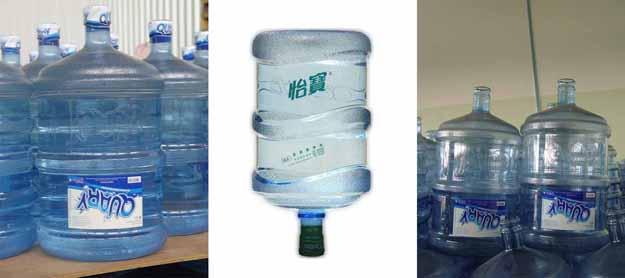

Still water, pure water, RO water, mineral water, sparkling water, etc. in 3 gallon, 4 gallon and 5 gallon bottles

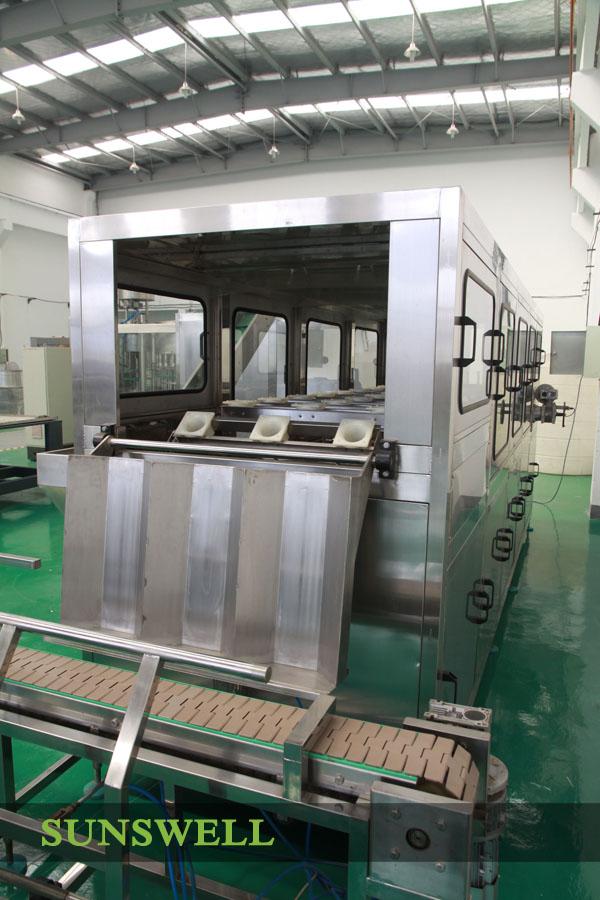

TGX series 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still water, pure water, RO water, mineral water, sparkling water, etc. in big jars on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.


Technical features of 5 gallon water filling machine


Equipment structure of 5 gallon water filling machine


Specifications:


Model

TGX-
120

TGX-
300

TGX-
450

TGX-
600

TGX-
900

TGX-
1200

Filling heads123468
Volume(L)18.918.918.918.918.918.9
Barrel size(mm)270*490270*490270*490270*490270*490270*490
Capacity(b/n)1202003004509001200
Gas pressure(Mpa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.6
Gas consumption(m*3/min)0.370.370.60.81.51.8
Moto power(kw)1.381.753.83.89.7513.5
Rated voltage(v)

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

380V/
50HZ

Weight(kg)680800150021003500


4500




Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant

Durable 5 Gallon Water Filling Machine , Automatic Pure Mineral Barrel Water Plant
